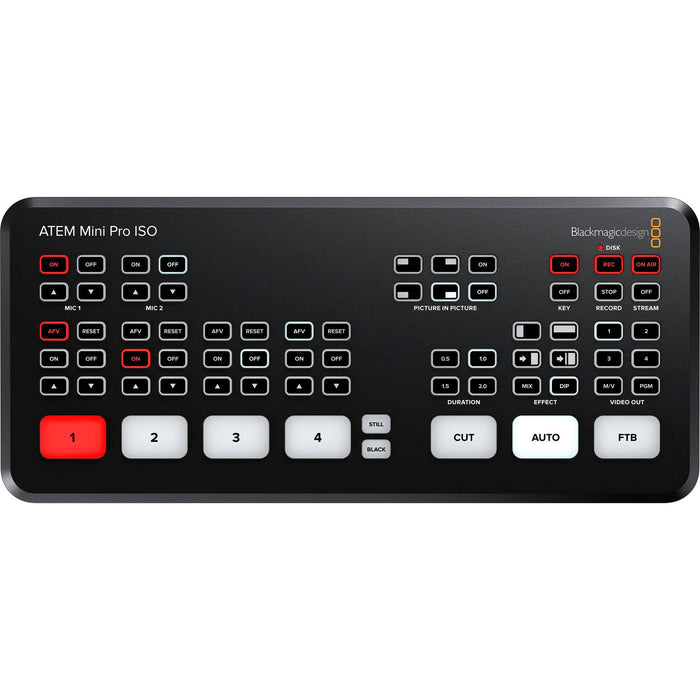

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

$1,319.00

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

Features:

  • 4-Channel Live Stream HDMI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • DVE Transition, Chroma/Luma Keyers

Specifications:

  • Total Video Inputs: 4
  • Total Outputs: 2
  • Total Aux Outputs: 1
  • Total Audio Inputs: 2 x 3.5mm stereo mini jack.
  • Total Audio Outputs: None, embedded audio only.
  • Timecode Connection: None
  • HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio.
  • Video Input Re-Sync: On all 4 HDMI inputs.
  • Frame Rate and Format Converters: On all 4 HDMI inputs.
  • HDMI Program Outputs: 1
  • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
  • HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Ultra HD Video Standards: None
  • Video Sampling: 4:2:2 YUV
  • Color Precision: 10-bit
  • Color Space: Rec 709
  • HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz, 1920 x1080i 50 and 59.94Hz 60Hz
  • Colorspace Conversion: Hardware based real time.
  • Upstream Keyers: 1
  • Downstream Keyers: 1
  • Advanced Chroma Keyers: 1
  • Linear/Luma Keyers: 2
  • Transition Keyer: DVE only.
  • Total Number of Layers: 5
  • Pattern Generators: 1
  • Color Generators: 2
  • DVE with Borders and Drop Shadow: 1
  • Interface: Minimum monitor resolution of 1366 x 768.
  • Audio Mixer: 6 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
  • Analog Input: Unbalanced stereo
  • Analog Input Delay: Up to 8 frames
  • Input Impedance: 1.8k
  • Max Input Level: +6dBV
  • Mic Plug In Power: Available on both 3.5mm mini jack connections.
  • Direct Streaming: ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
  • Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
  • Video Recording: 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio, 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
  • Audio Recording: 6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.
  • Switching: Program switching recorded as a DaVinci Resolve project .drp file.
  • Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
  • Multi View Monitoring: 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
  • Multi View Video Standard: HD
  • Media Players: 1
  • Channels: Fill and key for each Media Player.
  • Media Pool Still Image Capacity: 20 with fill and key.
  • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
  • Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
  • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
  • Control Panel Compatibilty: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
  • Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.
  • Software Updates: Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
  • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10, 64-bit
  • Power Supply: 1 x External 12V power supply.
  • Power Usage: 36W
  • Operating Temperature: 5° C to 40° C (41° - 104° F)
  • Storage Temperature: -10° to 60° C (14° to 140° F)
  • Relative Humidity: 0% to 90% non-condensing
